Menawarkan solusi terbaik untuk Anda
Penjualan & dukungan:
 |
| Tempat asal: | Cina, Ningbo |
| Nama merek: | BRANDO |
| Sertifikasi: | CE, ISO |
| Nomor model: | Rp50 |
| Kuantitas min Order: | 80 BUAH |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kotak, Karton, Pallet |
| Waktu pengiriman: | 4 sampai 7 hari kerja |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union, PayPal |
| Menyediakan kemampuan: | 200000 pcs per bulan |
| Nama produk: | Penggetar Rol Pneumatik | Frekuensi Nominal: | 10000 sampai 36000 rpm |
|---|---|---|---|
| Gaya sentrifugal: | 1070 sampai 12500 N | Suhu Kerja: | Hingga 150 ℃ |
| Panjang: | 86mm | Lebar: | 29mm |
| Ketinggian: | 50 mm | Ukuran Pelabuhan: | 1/8'' |
| Menyoroti: | Findeva Type Pneumatic Roller Vibrator,R-50 Pneumatic Roller Vibrator,Findeva Type R-50 Roller Vibrator |
||

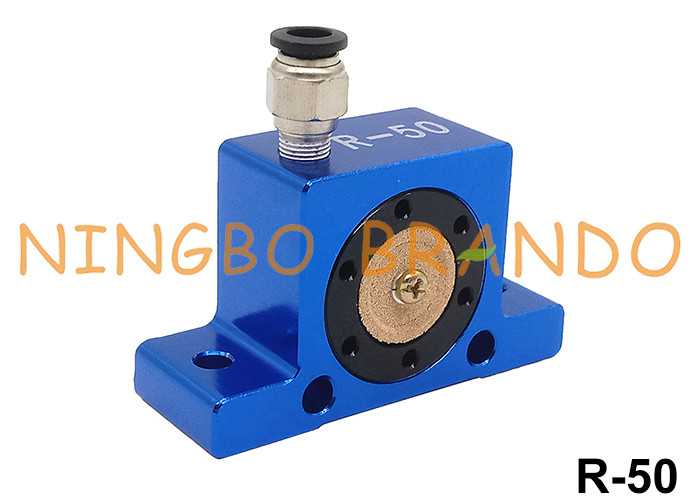

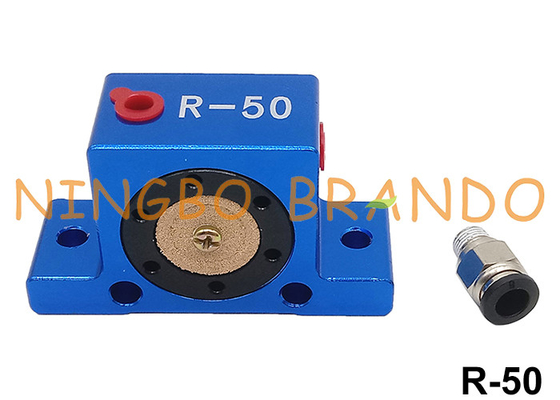

R-50 Findeva Type Pneumatic Roller Vibrator For Industrial Hopper
R Series Pneumatic Roller Vibrators are durable, compact, lightweight, and simple in design. They are small enough to fit in your hand, but still capable of delivering very high centrifugal forces. Construction features a lightweight machined aluminum body, precision steel roller, and special high impact plastic endplates. For easy mounting, the body has two sets of holes; one set for horizontal mounting, the other for vertical. Air is supplied to the unit through one of two inlet ports, which are drilled at right angles to one another in the body. This design feature allows easy access to air inlets in various mounting positions.
Main Dimension of R Series Pneumatic Roller Vibrators:
|
Model
|
A
(mm)
|
Width
(mm)
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
F
(mm)
|
G
(mm)
|
H
(Thread)
|
|
R-50
|
50
|
29
|
86
|
68
|
12
|
7
|
40
|
G1/8''
|
|
R-65
|
65
|
37
|
113
|
90
|
16
|
9
|
50
|
G1/4''
|
|
R-80
|
80
|
43
|
128
|
104
|
16
|
9
|
60
|
G1/4''
|
|
R-100
|
100
|
52
|
160
|
130
|
20
|
11
|
80
|
G3/8''
|
|
R-120
|
120
|
77
|
194
|
152
|
24
|
17
|
-
|
G3/8''
|
Technical Data of R Series Pneumatic Roller Vibrators:
|
Model
|
Vibrations
(x1000 RPM)
|
Centrifugal Force
(N)
|
Air Consumption
(l/min)
|
||||||
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
|
|
R-50
|
25.0
|
35.0
|
36.0
|
1070
|
2920
|
4220
|
100
|
145
|
195
|
|
R-65
|
19.0
|
21.0
|
26.0
|
2730
|
4830
|
6120
|
200
|
300
|
400
|
|
R-80
|
15.5
|
18.5
|
19.0
|
3000
|
6090
|
7450
|
290
|
430
|
570
|
|
R-100
|
11.0
|
14.0
|
16.0
|
3750
|
6750
|
8900
|
370
|
550
|
730
|
|
R-120
|
10.0
|
11.5
|
12.5
|
8000
|
10000
|
12500
|
500
|
730
|
970
|
Construction of R Series Pneumatic Roller Vibrators:
More Pneumatic Vibrators for your to choose:
|
|
|
|
GT Series Pneumatic Turbine Vibrators |
K Series Pneumatic Ball Vibrators |
R Series Pneumatic Roller Vibrator |
More Accessories for Pneumatic Vibratos:
|
|
| Pneumatic Fitting | Pneumatic Silencer |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Kontak Person: Mr. Brandon Bao
Tel: 86-13454729544
Faks: 86-574-83879820
