| Tempat asal: | Cina, Ningbo |
| Nama merek: | BRANDO |
| Sertifikasi: | CE, ISO |
| Nomor model: | R65 |
| Kuantitas min Order: | 20 pcs |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kotak, Karton, Pallet |
| Waktu pengiriman: | 4 sampai 7 hari kerja |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union, PayPal |
| Menyediakan kemampuan: | 200000 pcs per bulan |
| Nama produk: | Penggetar Rol Pneumatik | Frekuensi Nominal: | 10000 sampai 36000 rpm |
|---|---|---|---|
| Gaya sentrifugal: | 1070 sampai 12500 N | Suhu Kerja: | Hingga 150 ℃ |
| Panjang: | 113MM | Lebar: | 37mm |
| Ketinggian: | 65mm | Ukuran Pelabuhan: | 1/4'' |
| Menyoroti: | Findeva Type Pneumatic Roller Vibrator,R-65 Pneumatic Roller Vibrator,Findeva Type R-65 |
||

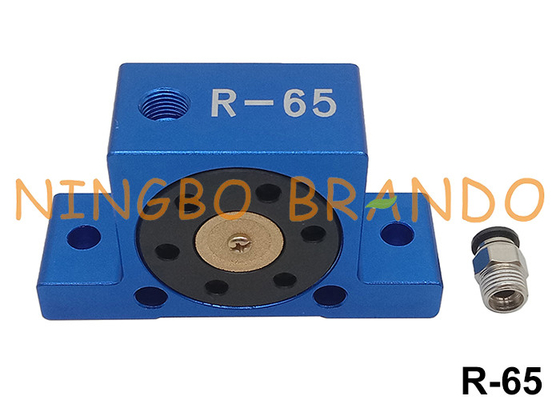

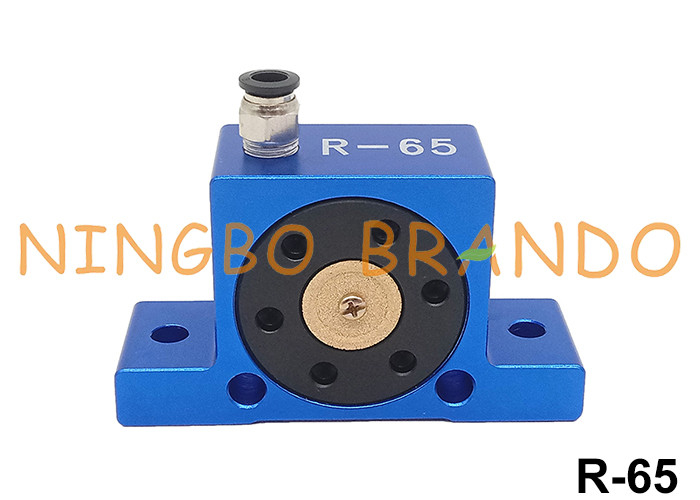

Findeva Type R-65 Pneumatic Roller Vibrator For Industrial Chutes
R series Pneumatic Roller Vibrator design is simple, but still gives a strong centrifugal force. Body made trom an extruded aluminum, refined steel roll in which the scrolling. This steel roller by the two special high--impact plastic coer positioning. The houseing has two horizontal and two vertical holes, making in stallation easy. Air into two mutually perpendicular intake of an entry. The two air intakes for the standard pipe thread. Is not a block intake, supplied with a pipe plug.
R series pneumatic roller vibrator of high frequency vibrator is suitable for the vibration of liquid powder, filling and handling purposes. Because it is a gas transmission, so the vibration frequency to adjust the pressure to achieve control. Mainly used for: Hopper discharge is phlogistic, stir - powder material conveying powder, the mold plastic and compaction of concrete.
Main Dimension of R Series Pneumatic Roller Vibrators:
|
Model
|
A
(mm)
|
Width
(mm)
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
F
(mm)
|
G
(mm)
|
H
(Thread)
|
|
R-50
|
50
|
29
|
86
|
68
|
12
|
7
|
40
|
G1/8''
|
|
R-65
|
65
|
37
|
113
|
90
|
16
|
9
|
50
|
G1/4''
|
|
R-80
|
80
|
43
|
128
|
104
|
16
|
9
|
60
|
G1/4''
|
|
R-100
|
100
|
52
|
160
|
130
|
20
|
11
|
80
|
G3/8''
|
|
R-120
|
120
|
77
|
194
|
152
|
24
|
17
|
-
|
G3/8''
|
Technical Data of R Series Pneumatic Roller Vibrators:
|
Model
|
Vibrations
(x1000 RPM)
|
Centrifugal Force
(N)
|
Air Consumption
(l/min)
|
||||||
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
|
|
R-50
|
25.0
|
35.0
|
36.0
|
1070
|
2920
|
4220
|
100
|
145
|
195
|
|
R-65
|
19.0
|
21.0
|
26.0
|
2730
|
4830
|
6120
|
200
|
300
|
400
|
|
R-80
|
15.5
|
18.5
|
19.0
|
3000
|
6090
|
7450
|
290
|
430
|
570
|
|
R-100
|
11.0
|
14.0
|
16.0
|
3750
|
6750
|
8900
|
370
|
550
|
730
|
|
R-120
|
10.0
|
11.5
|
12.5
|
8000
|
10000
|
12500
|
500
|
730
|
970
|
Construction of R Series Pneumatic Roller Vibrators:
