Name: 2S150-15 1/2'' Airtac Type Solenoid Valve Stainless Steel SS304 For Water Air
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 2S050-15
Price: 26.00 USD
Availability: InStock

Rumah Produk Katup Solenoid Stainless Steel

2S150-15 1/2'' Airtac Type Solenoid Valve Stainless Steel SS304 For Water Air

Detail produk:

Tempat asal:	Ningbo, Cina
Nama merek:	BRANDO
Sertifikasi:	None
Nomor model:	2S050-15

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100 PCS
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Kotak, Karton, Pallet
Waktu pengiriman:	Negosiasi
Syarat-syarat pembayaran:	T/T, PayPal, Western Union
Menyediakan kemampuan:	100000PCS Per Bulan

Kontak

Detil Deskripsi produk

Nama produk:	Katup Solenoid	Ukuran Pelabuhan:	1/2''
Ukuran Lubang:	15mm	Bahan Tubuh:	Baja Tahan Karat 304
Bahan segel:	NBR (Standar), EPDM, FKM (Fleksibel)	Media kerja:	Air, Udara, Gas, Cairan, dll
Fungsi:	2/2 Cara Biasanya Tertutup	Tindakan:	Dioperasikan Percontohan
Tekanan Kerja:	0.5 sampai 10 bar	Tegangan:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Menyoroti:	Airtac Solenoid Valve 2S150-15 , Water Solenoid Valve Stainless Steel , Solenoid Stainless Steel Valve 1/2''

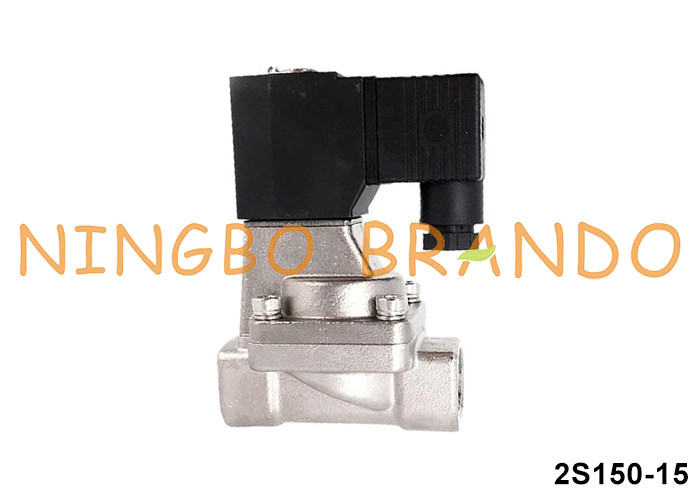

2S150-15 Airtac Type Stainless Steel Solenoid Valve

Product Features:

1. Working Medium: Water, Air, Gas, Liquid, etc

2. Max Working Pressure: 10 bar

3. Medium Temperature: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)

4. Port Size: 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''

5. Orifice Size: 3mm, 5mm, 15mm, 20mm, 25mm

6. Body Material: Stainless Steel 304

7. Seal Material: NBR (Standard), EPDM, FKM

8. Operation: Direct Acting (DN3 to DN5), Pilot Operated (DN15 to DN25)

9. Function: 2 Way Normally Closed

10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

Model No	2S030-06	2S030-08	2S050-10	2S050-15	2S150-10	2S150-15	2S200-20	2S250-25
Port Size	1/8''	1/4''	3/8''	1/2''	3/8''	1/2''	3/4''	1''
Orifice Size	3mm	3mm	5mm	5mm	15mm	15mm	20mm	25mm
CV	0.33	0.33	0.83	0.83	5.5	5.5	9.5	12.5
Body Material	Stainless Steel 304
Seal Material	NBR (Standard), EPDM, FKM
Working Medium	Water, Air, Gas, Liquid, etc
Working Temperature	NBR: -5 to +80℃ EPDM: -5 to +120℃ FKM: -10 to +150℃
Working Pressure	0 to 10 bar				0.5 to 10 bar
Operation	Direct Acting				Pilot Operated
Function	2 Way Normally Closed
Supply Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Main Dimension:

Model No	Port	A	B	C	D	L
2S030-06	1/8''	60	25	70	41	16
2S030-08	1/4''	60	25	70	41	16
2S050-10	3/8''	72	31	85	52	23
2S050-15	1/2''	72	31	85	52	23
2S150-10	3/8''	92	46	105	70	/
2S150-15	1/2''	92	46	105	70	/
2S200-20	3/4''	96	53	113	82	/
2S250-25	1''	102	59	122	92	/
