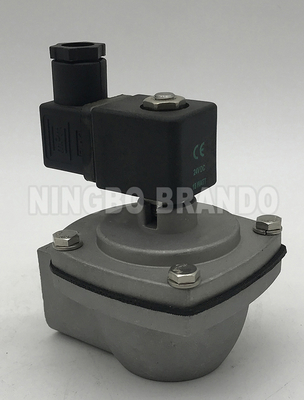

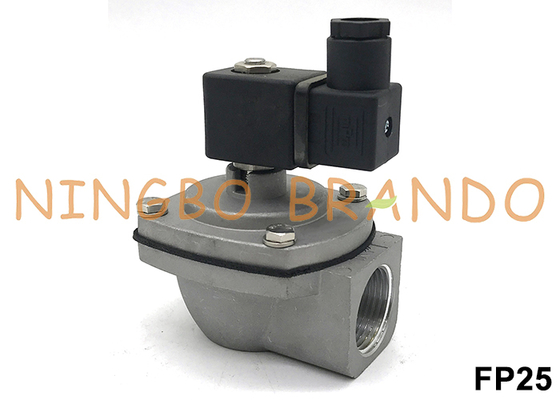

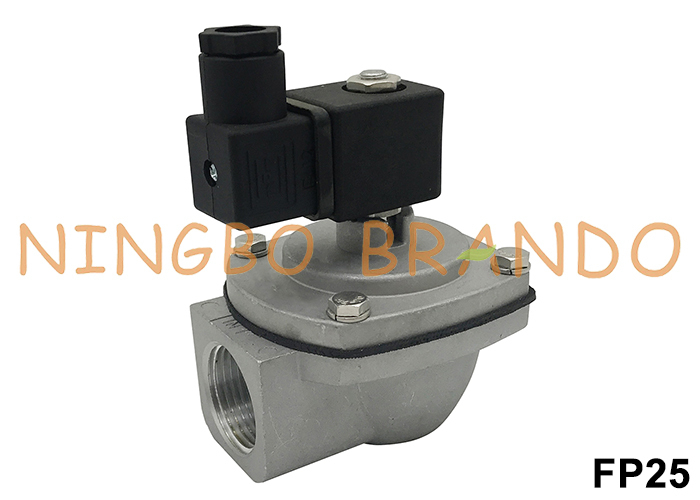

Name: TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V
Brand: Ningbo Brando Hardware Co., Ltd
SKU: FP25
Price: 49.10 USD
Availability: InStock

Rumah Produk Pulsa Jet Valve

TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V

Detail produk:

Tempat asal:	Ningbo, Cina
Nama merek:	BRANDO
Sertifikasi:	None
Nomor model:	FP25

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	8 pcs
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Kotak, karton, palet
Waktu pengiriman:	4 sampai 7 hari kerja
Syarat-syarat pembayaran:	Paypal, Serikat Barat, T/T
Menyediakan kemampuan:	50000 pcs per bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Katup Pulsa	Ukuran port:	1 ''
Bahan tubuh:	Aluminium	Bahan diafragma:	NBR (Standar), FKM (Fleksibel)
Tekanan operasi:	0,5 hingga 7,5 batang	Voltase:	24VDC, 24VAC, 110VAC, 220VAC
Aplikasi:	Pengumpul Debu
Menyoroti:	TURBO Pulse Jet Valve , FP25 Pulse Jet Valve , TURBO TF025 Pulse Valve

TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Technical Data:

Integral Pilot	FP20	FP25	FP40	FP55	FP65
Remote Pilot	FM20	FM25	FM40	FM55	FM65
Port Size	3/4''	1''	1-1/2''	2''	2-1/2''
Diaphragm Number	1		2
Pipe Connection	Threaded
Body Material	Diecast Aluminum
Diaphragm Material	NBR (Standard), FKM (Optional)
Working Pressure	0.5 to 7.5 bar
Voltage	24VDC, 24VAC, 110VAC, 220VAC

FP25 Dimension:

TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V 0

Related Products:


Coil	Armature	Diaphragm	Pulse Controller

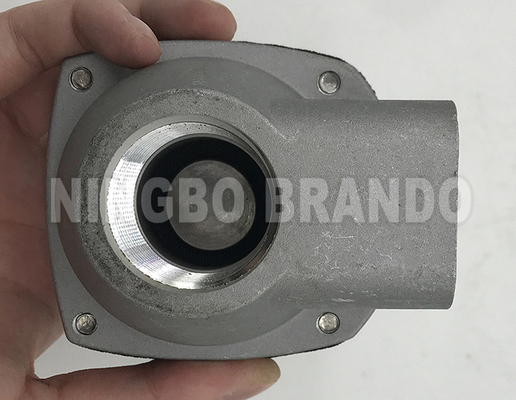

Production Show:

TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V 5

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
