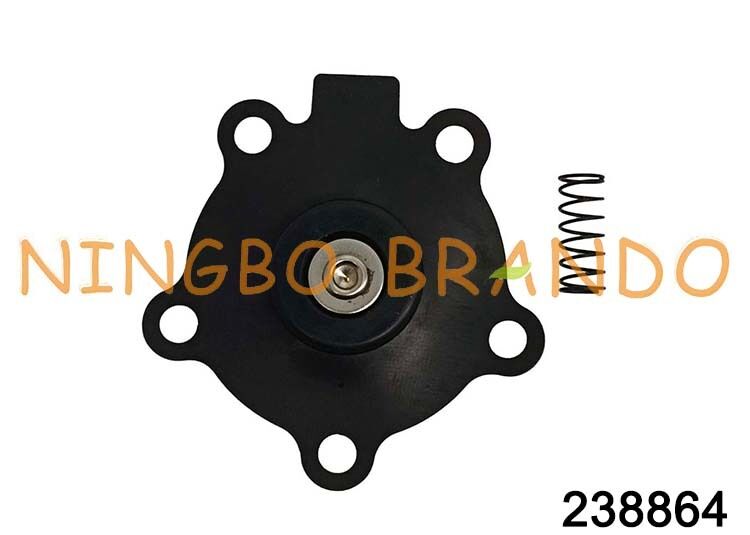

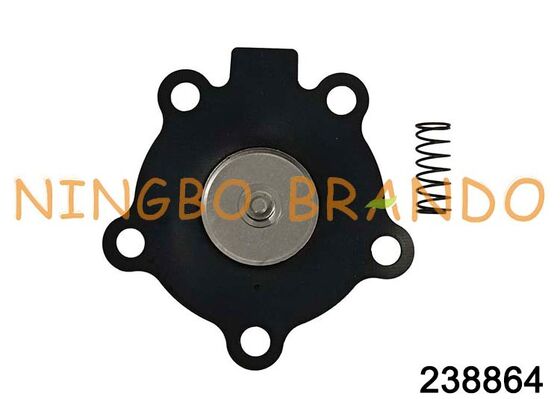

Name: Asco Type 238864 Replacement Diaphgram For Pulse Valve 8353C033 8353C030 8353C004
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 96875 (238864)
Price: 49.10 USD
Availability: InStock

Rumah Produk Kit Perbaikan Diafragma

Asco Type 238864 Replacement Diaphgram For Pulse Valve 8353C033 8353C030 8353C004

Detail produk:

Tempat asal:	NINGBO, Tiongkok
Nama merek:	BRANDO
Sertifikasi:	CE, ISO
Nomor model:	96875 (238864)

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	20 Set
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Kantong plastik, Kotak, Karton, Pallet
Waktu pengiriman:	4 sampai 7 hari kerja
Syarat-syarat pembayaran:	T/T, Paypal, Western Union
Menyediakan kemampuan:	100000 set per bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Diafragma katup pulsa	Model Katup Pulsa yang Dipasang No:	8353C033, 8353C030, 8353C004
Ukuran Port Katup Pulsa yang Dipasang:	3/4 ''	Bahan diafragma:	NBR
1 set:	1pc Diafragma, 1pc Musim Semi
Menyoroti:	ASCO Diaphragm 238864 , ASCO Diaphragm 96875 , ASCO Diaphragm Repair Kit

Asco Type 238864 Replacement Diaphgram For Pulse Valve 8353C033 8353C030 8353C004

The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphragm is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

96875 (238864) Dimension:

Asco Type 238864 Replacement Diaphgram For Pulse Valve 8353C033 8353C030 8353C004 0

Reference No:

Integral Pilot Pulse Valve Model No	Remote Pilot Pulse Valve Model No	Pulse Valve Port Size	Diaphragm Model	Diaphragm Model (10 pack)	Diaphragm Material
-	8353C033	3/4''	96875	238864	NBR diaphragm
-	8353C030	3/4''	96875	238864	NBR diaphragm
-	8353C004	3/4''	96875	238864	NBR diaphragm
-	8353C035	1''	200262	238866	HYTREL diaphragm
8353G041	-	1''	316563	238866	HYTREL diaphragm
8353G006	-	1''	300144	-	CR diaphragm, PA disc
8353G005	-	1-1/4''	300144	-	CR diaphragm, PA disc
8353G001	-	1-1/2''	300144	-	CR diaphragm, PA disc
-	8353H038	1-1/2''	276886	238870	HYTREL diaphragm
8353J039	-	1-1/2''	322108	238870	HYTREL diaphragm
8353G061	-	1-1/2''	316297	-	NBR diaphragm, PA disc
-	8353A062	1-1/2''	276884	-	NBR diaphragm, PA disc
8353G002	-	2''	300145	-	CR diaphragm, PA disc
-	8353 048	2''	256802	256797	CR diaphragm
8353G050	-	2''	316029	256797	CR diaphragm
8353G007	-	2 1/2''	176878	-	CR diaphragm, PA disc
8353G008	-	3''	176878	-	CR diaphragm, PA disc

Our Production:

Asco Type 238864 Replacement Diaphgram For Pulse Valve 8353C033 8353C030 8353C004 1

Related Products:


Pneumatic Hose Fitting	Pulse Jet Valve	Pilot Valve Enclosure	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

Label:

Kontak Person: Mr. Brandon Bao

Tel: 86-13454729544

Faks: 86-574-83879820
