Name: 276886 Hydrel Diaphragm Repair Kit For ASCO Pulse Jet Valve 8353H038
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 276886
Price: 49.10 USD
Availability: InStock

Rumah Produk Kit Perbaikan Diafragma

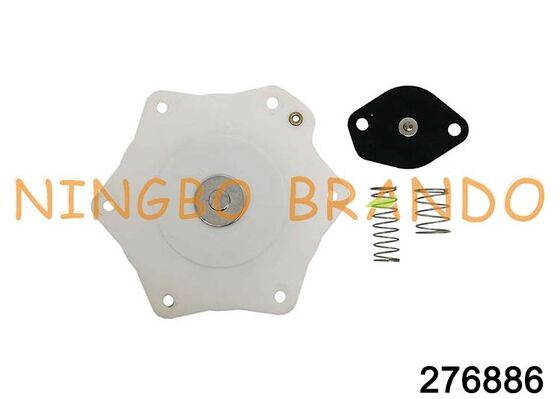

276886 Hydrel Diaphragm Repair Kit For ASCO Pulse Jet Valve 8353H038

Detail produk:

Tempat asal:	Cina
Nama merek:	BRANDO
Sertifikasi:	CE, ISO
Nomor model:	276886

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	5 set
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Kantong plastik, Kotak, Karton, Pallet
Waktu pengiriman:	3 sampai 5 hari kerja
Syarat-syarat pembayaran:	T/T, Paypal, Western Union
Menyediakan kemampuan:	100000 set per bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Diafragma katup pulsa	Ukuran Port Katup Pulsa yang Dipasang:	1 1/2 ''
Model katup pulsa yang dipasang:	8353H038	Bahan diafragma:	HYT (HITREL)
Warna:	Putih, hitam	1 set:	1x Diafragma Besar, 1x Diafragma Kecil, 2x Mata Air
Menyoroti:	ASCO Diaphragm 276886 , ASCO Diaphragm Replacement , HYT Pulse Valve Diaphragm

276886 Hydrel Diaphragm Repair Kit For ASCO Pulse Jet Valve 8353H038

The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

Overall Dimension of 276886 Diaphragm:


Main Diaphragm	Secondary Diaphragm

Model No of Pulse Valve Diaphragm:

Integral Pilot Pulse Valve Model No	Remote Pilot Pulse Valve Model No	Pulse Valve Port Size	Diaphragm Model	Diaphragm Model (10 pack)	Diaphragm Material
-	8353C033	3/4''	96875	238864	NBR diaphragm
-	8353C030	3/4''	96875	238864	NBR diaphragm
-	8353C004	3/4''	96875	238864	NBR diaphragm
-	8353C035	1''	200262	238866	HYTREL diaphragm
8353G041	-	1''	316563	238866	HYTREL diaphragm
8353G006	-	1''	300144	-	CR diaphragm, PA disc
8353G005	-	1 1/4''	300144	-	CR diaphragm, PA disc
8353G001	-	1 1/2''	300144	-	CR diaphragm, PA disc
-	8353H038	1 1/2''	276886	238870	HYTREL diaphragm
8353J039	-	1 1/2''	322108	238870	HYTREL diaphragm
8353G061	-	1 1/2''	316297	-	NBR diaphragm, PA disc
-	8353A062	1 1/2''	276884	-	NBR diaphragm, PA disc
8353G002	-	2''	300145	-	CR diaphragm, PA disc
-	8353 048	2''	256802	256797	CR diaphragm
8353G050	-	2''	316029	256797	CR diaphragm
8353G007	-	2 1/2''	176878	-	CR diaphragm, PA disc
8353G008	-	3''	176878	-	CR diaphragm, PA disc

Our Production of Pulse Valve Diaphragm:

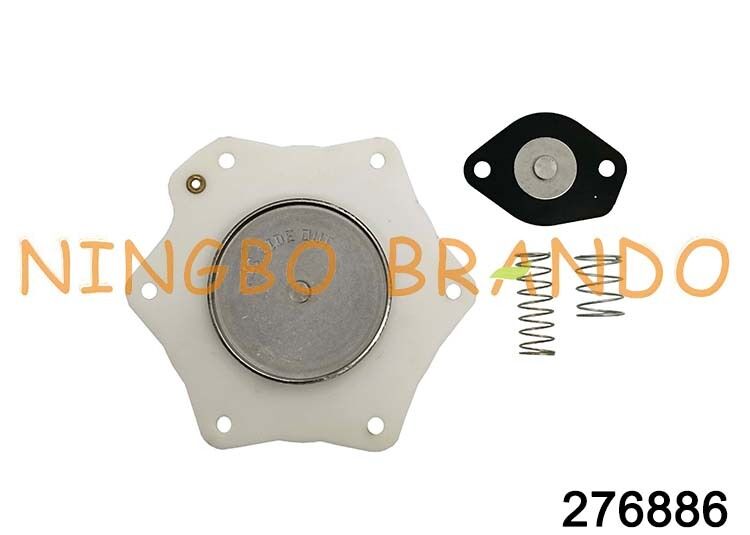

276886 Hydrel Diaphragm Repair Kit For ASCO Pulse Jet Valve 8353H038 2
