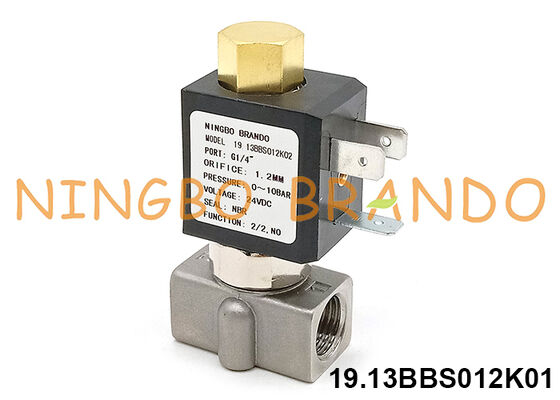

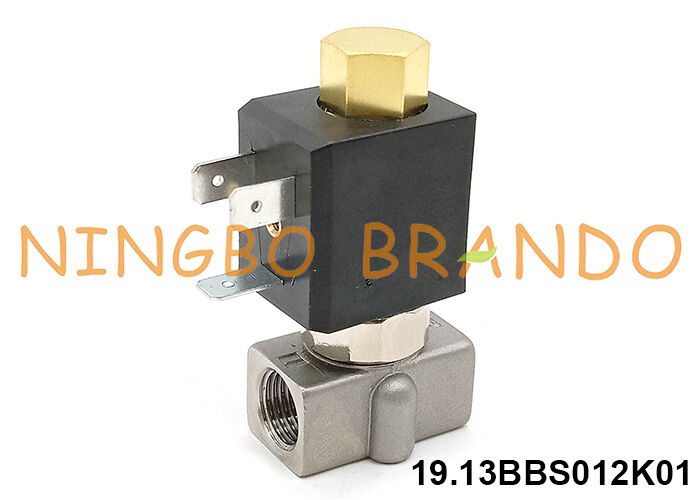

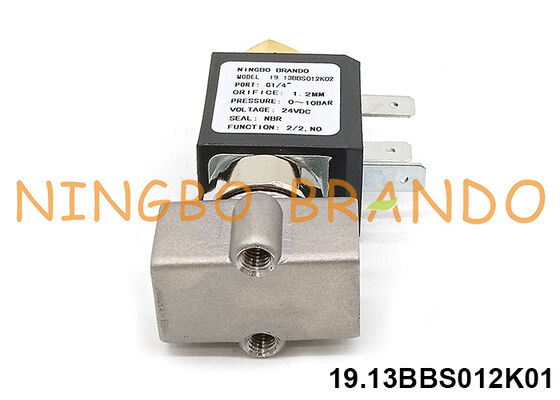

Name: 1/8'' 1/4'' 2 Way Normally Open Stainless Steel Solenoid Valve 30bar
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 19.13BAS
Price: 26.00 USD
Availability: InStock

Rumah Produk Katup Solenoid Stainless Steel

1/8'' 1/4'' 2 Way Normally Open Stainless Steel Solenoid Valve 30bar

Detail produk:

Tempat asal:	NINGBO, Tiongkok
Nama merek:	BRANDO
Sertifikasi:	CE, ISO
Nomor model:	19.13BAS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	50 buah
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Kotak, karton, palet
Waktu pengiriman:	7 hari kerja
Syarat-syarat pembayaran:	T/T, Paypal, Western Union
Menyediakan kemampuan:	200000 pcs per bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Katup solenoid	Ukuran Pelabuhan:	1/8 '', 1/4 ''
Ukuran lubang:	1.2mm, 1.5mm, 2mm, 2.5mm, 2.8mm	Bahan Tubuh:	Baja Tahan Karat 304
Bahan Segel:	NBR (Standar), EPDM, FKM (Fleksibel)	Media Kerja:	Udara, air, uap, gas, cair, minyak ringan, dll.
Suhu media:	NBR (-10 hingga +80℃), EPDM (-30 hingga +120℃), FKM (-30 hingga +150℃)	Tekanan kerja:	0 sampai 30 bar
Operasi:	Akting Langsung Plunger	Fungsi:	2 Cara Biasanya Terbuka
Voltase:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Menyoroti:	Normally Open Stainless Steel Solenoid Valve , 1/8'' Stainless Steel Solenoid Valve , 2 Way NO Solenoid Valve

1/8'' 1/4'' 2 Way Normally Open Stainless Steel Solenoid Valve 30bar

This is a small and compact solenoid valve, 1/8'' or 1/4'' port, 1.2 to 2.8mm orifice, 0 to 30 bar, plunger direct acting, 2 way normally open, stainless steel 304 body, NBR standard seal, can be customized as EPDM or FKM seal to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.

Technical Data:

Model No	Port Size (inch)	Orifice Size (mm)	Cv	Working Pressure (bar)		Body	Seal	Voltage
Model No	Port Size (inch)	Orifice Size (mm)	Cv	DC	AC	Body	Seal	Voltage
2 Way Normally Closed, Direct Acting
19.13BAX012BXX	1/8'' 1/4''	1.2	0.09	0 to 30	0 to 30	Brass SS304	NBR EPDM FKM	12VDC 24VDC 24VAC 110VAC 220VAC
19.13BAX015BXX		1.5	0.11	0 to 30	0 to 30
19.13BAX020BXX		2.0	0.15	0 to 20	0 to 15
19.13BAX025BXX		2.5	0.18	0 to 14	0 to 10
19.13BAX028BXX		2.8	0.25	0 to 10	0 to 8
2 Way Normally Open, Direct Acting
19.13BBX012KXX	1/8'' 1/4''	1.2	0.09	0 to 10	0 to 10	Brass SS304	NBR EPDM FKM	12VDC 24VDC 24VAC 110VAC 220VAC
19.13BBX015KXX		1.5	0.11	0 to 9	0 to 9
19.13BBX020KXX		2.0	0.15	0 to 6	0 to 6
19.13BBX025KXX		2.5	0.18	0 to 4	0 to 4
19.13BBX028KXX		2.8	0.25	0 to 3	0 to 3
