| Tempat asal: | Cina |
| Nama merek: | Brando |
| Sertifikasi: | None |
| Nomor model: | DB116 |
| Kuantitas min Order: | 1 Set |
|---|---|
| Harga: | Dapat dinegosiasikan |
| Kemasan rincian: | Kantong plastik, Kotak, Karton, Pallet |
| Waktu pengiriman: | 4 sampai 7 hari kerja |
| Syarat-syarat pembayaran: | T/T, Western Union, Paypal |
| Menyediakan kemampuan: | 100000 set per bulan |
| Nama Produk: | Diafragma Katup Pulsa | Bahan diafragma: | NBR, Viton |
|---|---|---|---|
| 1 Set: | 1 buah Diafragma DB116, 1 buah Diafragma DB16, 2 buah Pegas | Model katup pulsa yang dipasang: | VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716 |
| Menyoroti: | Mecair Diaphragm DB116/C,Mecair Membrane DB116/C,DB116 Membrane Kit |
||

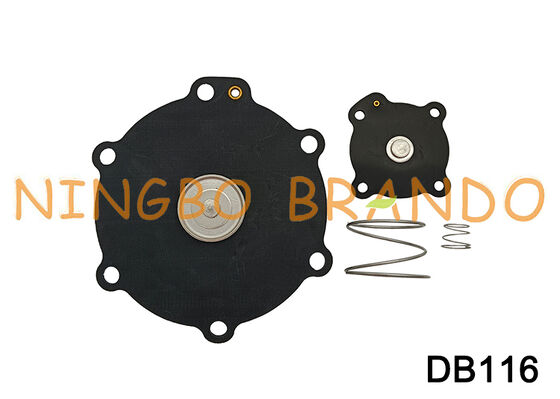

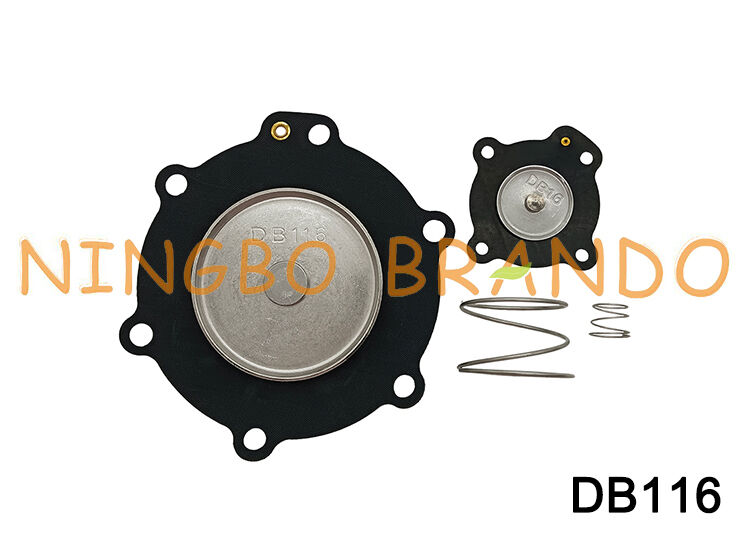

DB116 DB116/C Diaphragm Repair Kit For Mecair Pulse Jet Valve 2 Inch VNP216 VNP416
DB116 ( DB116/C ) Diaphragm ( Membrane ) for Mecair pulse valve VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse Jet valves are indirect type solenoid valves. When the solenoid of pulse jet valves gets energized, air trapped in the diaphragm is exhausted causing pressure difference in the diaphragm. Then the diaphragm is suddenly opened. When it is de-energized, air passes through the hole to the chamber which can balance the air pressure and close the valve. The opening and closing of the valve are done very fast for filter cleaning and consumption of compressed air effectively.
Ordering Code of Diaphragm For Mecair Pulse Valve:
|
Ordering code
|
Fitted valve code
|
Valve port size
|
Material
|
|
DB16/G
|
VNP206, VEM206, VNP306, VEM306
|
3/4''
|
NBR
|
|
DB18/G
|
VNP208, VEM208, VNP308, VEM308,
VNP408, VEM408
|
1''
|
NBR
|
|
DB18M
|
VNP608, VEM608, VNP708, VEM708
|
1'', 1-1/2''
|
NBR
|
|
DB112/G
|
VNP212, VEM212, VNP312, VEM312,
VNP412, VEM412
|
1-1/2''
|
NBR
|
|
DB114/C
|
VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714 |
1-1/2''
|
NBR
|
|
DB116/C
|
VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716 |
2''
|
NBR
|
|
DB120/C
|
VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720 |
2-1/2'', 3''
|
NBR
|
|
Tips: EPDM, FKM all available.
|
|||
Dimension of DB116 Diaphragm:
![]()
Video of DB116 Diaphragm:
Pictures of Pulse Valve Membrane Production:
![]()
More Products For Mecair Pulse Valve for you to choose:
| Valve Diaphragm | Solenoid Coil | Solenoid Armature | Pulse Controller |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
