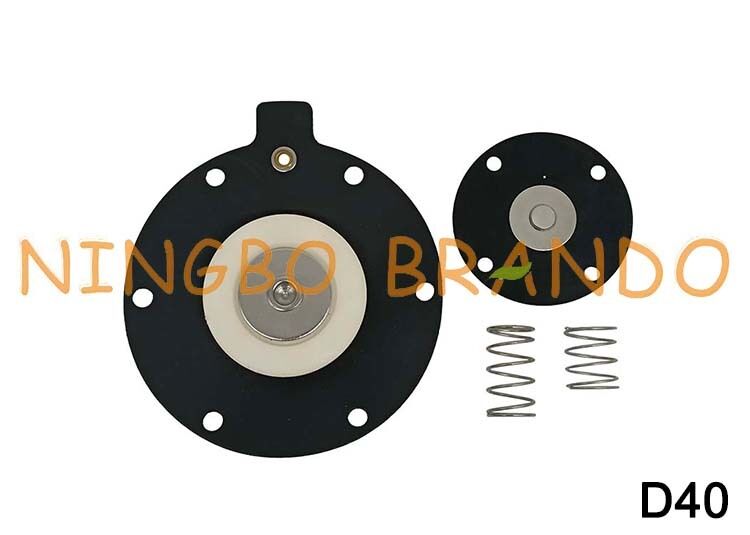

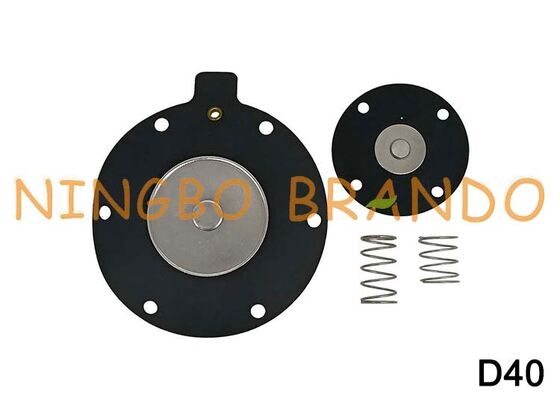

Name: Diaphragm Repair Kit For BFEC 1.5'' Pulse Jet Valve DMF-Z-40S DMF-ZM-40S DMF-Y-40S
Brand: Ningbo Brando Hardware Co., Ltd
SKU: D40
Price: 49.10 USD
Availability: InStock

Rumah Produk Kit Perbaikan Diafragma

Diaphragm Repair Kit For BFEC 1.5'' Pulse Jet Valve DMF-Z-40S DMF-ZM-40S DMF-Y-40S

Detail produk:

Tempat asal:	Cina
Nama merek:	Brando
Sertifikasi:	None
Nomor model:	D40

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Kantong Plastik, Kotak Dalam, Karton, Pallet
Waktu pengiriman:	4 sampai 7 hari
Syarat-syarat pembayaran:	T/T, Western Union, Paypal
Menyediakan kemampuan:	100000 set per bulan

Kontak

Detil Deskripsi produk

Diafragma materi:	Karet, nilon	1 Set:	1x Diafragma Besar, 1x Diafragma Kecil, 2x Mata Air
Ukuran Port Katup Pulsa yang Dipasang:	1 1/2 inci	Nama Produk:	Diafragma Katup Pulsa
Bahan diafragma:	NBR, Viton	Model katup pulsa yang dipasang:	DMF-Z-40S, DMF-ZM-40S, DMF-Y-40S, DMF-ZF-40S
Menyoroti:	Dmf-Z-40s Diaphragm Valve Kit , 1.5'' BFEC Diaphragm Repair Kit , Diaphragm Repair Kit For BFEC Pulse Valve

Diaphragm Repair Kit For BFEC 1.5'' Pulse Jet Valve DMF-Z-40S DMF-ZM-40S DMF-Y-40S

Diaphragm Valve is a special type of cut-off Valve, the opening and closing part is a Diaphragm made of soft material, which separates the body cavity from the cover cavity. Due to the limitations of body lining technology and diaphragm manufacturing process, larger body lining and larger diaphragm manufacturing process are difficult, so diaphragm valve should not be used for larger pipe diameter, due to the limitations of diaphragm material, diaphragm valve is suitable for low pressure and temperature is not high occasions. Generally do not exceed 180℃.

Ordering Number of Diaphragm For SBFEC Pulse Valve:

Diaphragm For New Version BFEC Pulse Valves
Diaphragm Order Code	Fitted Pulse Valve Model	Valve Port Size
DTY (Secondary Diaphragm)	All Double Diaphragm Pulse Valves	/
D20A	DMF-Z20	3/4''
	DMF-ZM-20
D20B	DMF-ZL-B	3/4''
D25	DMF-Z-25	1''
	DMF-ZM-25
	DMF-Y-25
	DMF-T-20	3/4''
D40	DMF-Z-40S	1-1/2''
	DMF-Y-40S
	DMF-ZF-40S
	DMF-ZM-40S
	DMF-T-25S	1''
D50	DMF-Z-50S	2''
	DMF-Y-50S
	DMF-T-50S
D62	DMF-Z-62S	2-1/2''
	DMF-Y-62S
	DMF-T-62S
D76	DMF-Z-76S	3''
	DMF-Y-76S
D102	DMF-Z-102S	4''
	DMF-Y-102S
D102A	DMF-Y-102SA	4''
D300	DMF-N-300	12''
Diaphragm For Old Version BFEC Pulse Valves
LD50	DMF-Z-50S (Old)	2''
	DMF-Y-50S (Old)
	DMF-T-50S (Old)
LD62	DMF-Z-62S (Old)	2-1/2''
	DMF-Y-62S (Old)
	DMF-T-62S (Old)
LD76	DMF-Z-76S (Old)	3''
	DMF-Y-76S (Old)

Main Dimension of D40 Diaphragm For BFEC Pulse Valve:

Diaphragm Repair Kit For BFEC 1.5'' Pulse Jet Valve DMF-Z-40S DMF-ZM-40S DMF-Y-40S 0

Video of D40 Diaphgram For BFEC Pulse Valve:

Pictures of Pulse Valve Diaphragm Production:

More Related Products For you to choose:


Right Angle Type	Quick Mount Type	Straight Through Type	Submerged Type

Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

Label:

Kontak Person: Mr. Brandon Bao

Tel: 86-13454729544

Faks: 86-574-83879820
