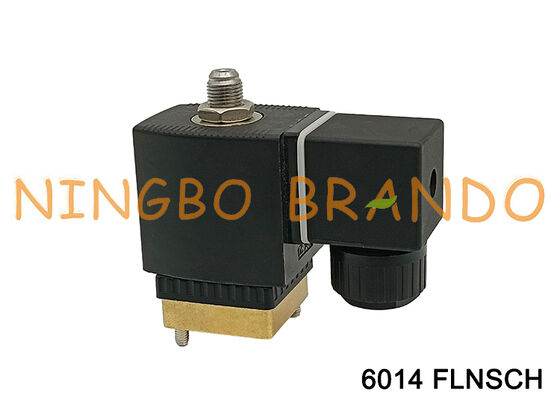

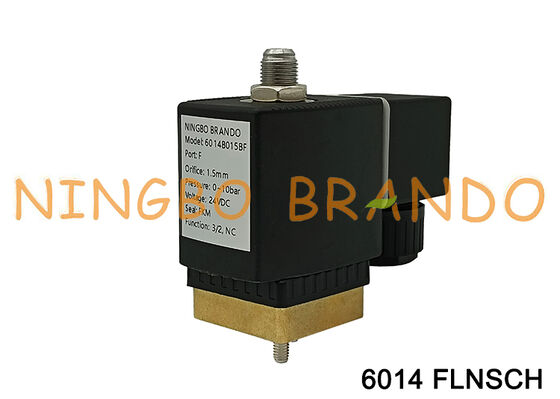

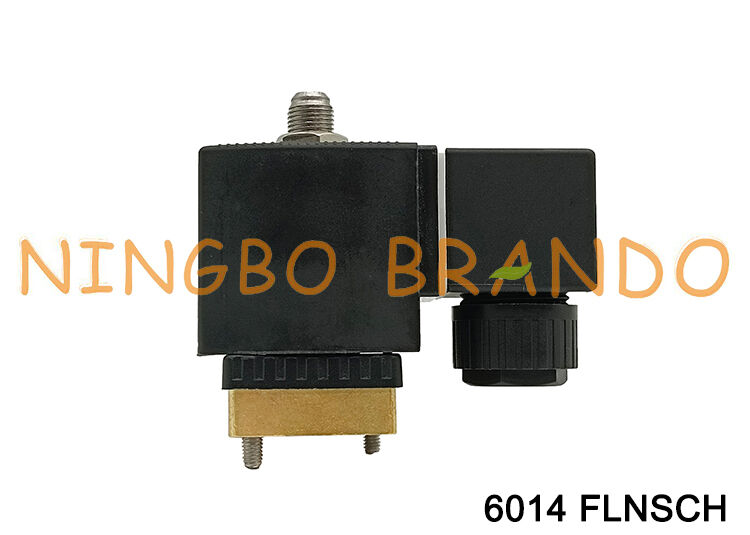

Name: Burkert Type 6014 C FLNSCH Brass Solenoid Valve Sub Base 1.5 2.0 NBR EPDM FKM
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 6014 FLNSCH
Price: 51.00 USD
Availability: InStock

Rumah Produk Katup Solenoid Kuningan

Burkert Type 6014 C FLNSCH Brass Solenoid Valve Sub Base 1.5 2.0 NBR EPDM FKM

Detail produk:

Tempat asal:	Cina
Nama merek:	BRANDO
Sertifikasi:	None
Nomor model:	6014 FLNSCH

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Kotak Dalam, Karton, Palet
Waktu pengiriman:	Perundingan
Syarat-syarat pembayaran:	T/T, Western Union, MoneyGram
Menyediakan kemampuan:	100.000 buah per bulan

Kontak

Detil Deskripsi produk

Ukuran lubang:	1.5mm, 2.0mm	Operasi:	Akting Langsung Plunger
Bahan Tubuh:	Kuningan	Voltase:	12VDC, 24VDC, 110VAC, 220VAC
Bahan Segel:	NBR, VITON, EPDM	Fungsi:	3 Cara Biasanya Tertutup
Menyoroti:	Solenoid Valve 6014 C , 6014 C FLNSCH , Burkert Solenoid valve 6014 C

Burkert Type 6014 C FLNSCH Brass Solenoid Valve Sub Base 1.5 2.0 NBR EPDM FKM

6014 is a direct-acting plunger solenoid valve. Various seal material combinations are available depending on the application. A specific flange design (SFB) enables space-saving arrangement of valves on a manifold. The coils are moulded with polyamide or with chemically resistant epoxy.

Technical Data of 6014 Solenoid Valve:

Model	Port Size (inch)	Orifice Size (mm)	Kv (m³ /h)	Pressure Range (bar)	Medium Temperature (℃)	Body Material	Voltage
3 Way Normally Closed (6014 C), 3 Way Normally Open (6014 D)
6014	1/8''	1.5	0.07	0 to 16	NBR: -10 to +80 EPDM: -30 to +120 FKM: -30 to +150	Brass Stainless Steel	12VDC 24VDC 24VAC 110VAC 220VAC
		2	0.11	0 to 10
		2.5	0.16	0 to 6
	1/4''	1.5	0.07	0 to 16
		2	0.11	0 to 10
		2.5	0.16	0 to 6
	Sub-base (SFB)	1.5	0.07	0 to 16
	Sub-base (SFB)	2	0.11	0 to 10

BRANDO Solenoid Valve Production Video:

More Solenoid Valves for you to choose:

Brass Solenoid Valve


Stainless Steel Solenoid Valve

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
