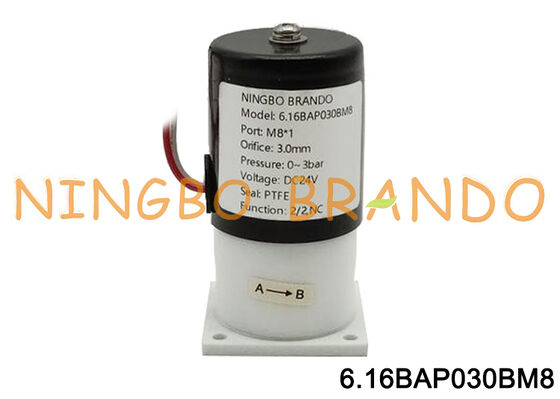

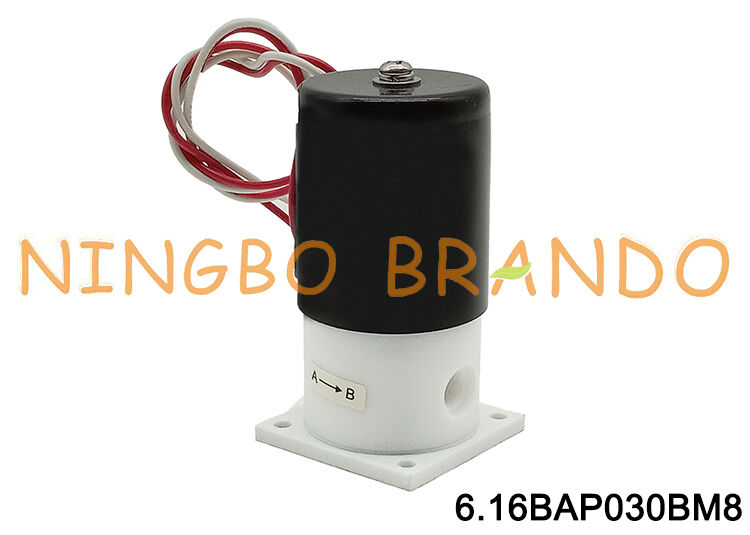

Name: M8 Anti-corrosive Isolation PTFE Solenoid Valve DC24V AC220V
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 6.16BAP030BM8
Price: 25.00 USD
Availability: InStock

Rumah Produk Katup Solenoid Plastik

M8 Anti-corrosive Isolation PTFE Solenoid Valve DC24V AC220V

Detail produk:

Tempat asal:	NINGBO, Tiongkok
Nama merek:	BRANDO
Sertifikasi:	None
Nomor model:	6.16BAP030BM8

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	200
Harga:	Dapat dinegosiasikan
Kemasan rincian:	kotak batin, karton, palet
Waktu pengiriman:	Perundingan
Syarat-syarat pembayaran:	T/T, Paypal, Western Union
Menyediakan kemampuan:	100000pcs per bulan

Kontak

Detil Deskripsi produk

Fungsi:	2 Way, Biasanya Tertutup	Ukuran Pelabuhan:	M8
Ukuran lubang:	3mm	Bahan Badan Katup:	PTFE
Bahan Segel:	PTFE	Rentang Tekanan Kerja:	0 sampai 0,3 MPa
Tegangan:	12VDC, 24VDC, 110VAC, 220VAC
Menyoroti:	M8 PTFE Solenoid Valve , M8 Anti-corrosive PTFE Solenoid Valve , Anti Corrosion Solenoid Valve 24V

M8 Anti-corrosive Isolation PTFE Solenoid Valve DC24V AC220V

Product Features:

Our isolation solenoid valves offer instrument designers a completely inert, non-metallic fluid path. The valves use a flexible diaphragm to isolate the solenoid actuation mechanism from the fluid path. Isolation Valves offer low internal volumes, precise flow control and excellent ease of installation making them particularly suitable for use in highly aggressive and / or high purity fluid applications such as analytical chemistry and clinical diagnostics. The highly inert fluid path is especially useful in liquid chromatography, genomics and protein synthesis applications. The high flow factor makes these valves well suited to environmental and water analysis applications.

Technical Data of Isolation Solenoid Valve:

Model No.	Port size	Orifice (mm)	Cv	Mini Pressure	Max Pressure		Seal Material
					AC(6VA)	DC(10W)
6.16BAP030BM8	M8x1	3.0	0.1	0.0MPa	0.3MPa	0.3MPa	PTFE
6.16BAP030B01	1/8''	3.0	0.1	0.0MPa	0.3MPa	0.3MPa
6.16BAP030B02	1/4''	3.0	0.1	0.0MPa	0.15MPa	0.15MPa
					AC(24VA)	DC(13W)
6.16BAP060B02	1/4''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
6.16BAP060B03	3/8''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
6.16BAP060B04	1/2''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
6.16BAP060B06	3/4''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
