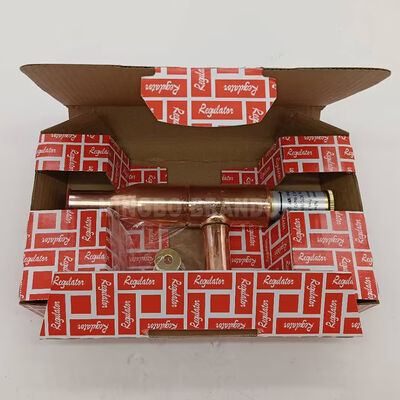

Name: Danfoss Type 034l0049 Crankcase Pressure Regulator KVL 15
Brand: Ningbo Brando Hardware Co., Ltd
SKU: KVL 15
Price: 65.00 USD
Availability: InStock

Rumah Produk Refrigerasi Solenoid Valve

Danfoss Type 034l0049 Crankcase Pressure Regulator KVL 15

Detail produk:

Tempat asal:	Cina
Nama merek:	BRANDO
Sertifikasi:	None
Nomor model:	KVL 15

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	5 buah
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Kotak Dalam, Karton, Palet
Waktu pengiriman:	perundingan
Syarat-syarat pembayaran:	T/T, Western Union, MoneyGram
Menyediakan kemampuan:	100000 BUAH per bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Pengatur Tekanan Bak Mesin	Ukuran Pelabuhan:	5/8''
Koneksi:	Solder (ODF)	Rentang Regulasi:	0 hingga 6 bar, Pengaturan Pabrik = 2 bar
Tekanan Kerja Maks:	14 batang	Kisaran suhu sedang:	-200 hingga +150℃
Pendingin:	CFC, HCFC, HFC	P-band maks:	2.0 batang
Menyoroti:	Crankcase pressure regulator KVL 15 , Danfoss KVL 15 , Danfoss 034L0049 KVL 15

Danfoss Type 034l0049 Crankcase Pressure Regulator KVL 15

A CPR or crankcase pressure regulator is nothing more than a pressure reducing valve. When installed on a compressor suction inlet and properly adjusted, the CPR will prevent the compressor suction pressure from ever rising above the CPR's setting. The CPR will help prevent refrigeration compressor from overloading during startup on refrigeration systems that may experience heavy load conditions such as a freezer after a defrost cycle.

Product video of KVL 12 Crankcase Pressure Regulator:

Technical Data of KVL Crankcase Pressure Regulator:

Refrigerants	CFC, HCFC, HFC
Regulation Range	0 to 6 bar, Factory Setting = 2 bar
Max Working Pressure	14 bar
Max Test Pressure	KVL 12-22: 28 bar KVL 28-35: 25.6 bar
Medium Temperature Range	-200 to +150℃
Max P-band	KVL 12-22: 2.0 bar KVL 28-35: 1.5 bar

Ordering Code of KVL Crankcase Pressure Regulator:

Model	Rated Capacity (kW)				Flare	Code no	Solder	Code no
Model	R22	R134a	R404A/R507	R407C	Flare	Code no	Solder	Code no
KVL 12	7.1	5.3	6.3	6.5	1/2''	034L0041	1/2''	034L0043
KVL 15	7.1	5.3	6.3	6.5	5/8''	034L0042	5/8''	034L0049
KVL 22	7.1	5.3	6.3	6.5			7/8''	034L0045
KVL 28	17.8	13.2	15.9	16.4			1 1/8''	034L0046
KVL 35	17.8	13.2	15.9	16.4			1 3/8''	034L0052

Dimension of KVL Crankcase Pressure Regulator:

Model	Connection		H1	H2	B1	C Solder	φ D
Model	Flare	Solder	H1	H2	B1	C Solder	φ D
KVL 12	1/2''	1/2''	7.047''	3.898''	2.520''	0.375''	1.181''
KVL 15	5/8''	5/8''	7.047''	3.898''	2.520''	0.5''	1.181''
KVL 22		7/8''	7.047''	3.898''	2.520''	0.625''	1.181''
KVL 28		1 1/8''	10.197''	5.945''	4.134''	0.875''	1.693''
KVL 35		1 3/8''	10.197''	5.945''	4.134''	1''	1.693''
