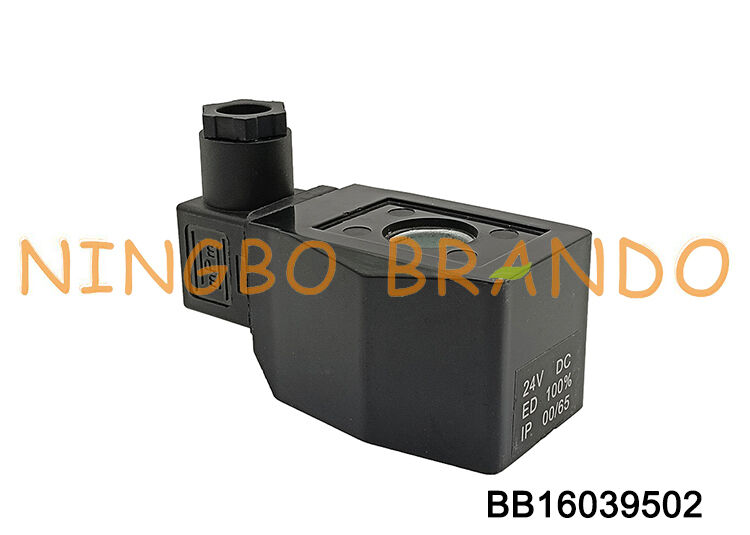

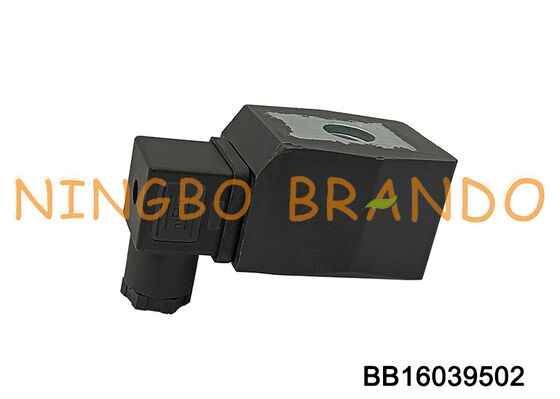

Name: Solenoid Valve Coil AB510 Inner Hole 16mm 28VA 31W 12VDC 24VDC 110VAC 220VAC
Brand: Ningbo Brando Hardware Co., Ltd
SKU: BB16039502
Price: 49.10 USD
Availability: InStock

Rumah Produk Coil Katup Solenoid

Solenoid Valve Coil AB510 Inner Hole 16mm 28VA 31W 12VDC 24VDC 110VAC 220VAC

Detail produk:

Tempat asal:	NINGBO, Tiongkok
Nama merek:	BRANDO
Sertifikasi:	None
Nomor model:	BB16039502

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	200
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Kotak Dalam, Karton, Palet
Waktu pengiriman:	perundingan
Syarat-syarat pembayaran:	T/T, PayPal, Western Union
Menyediakan kemampuan:	250000 lembar per bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Koil katup solenoid	Voltase:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Kekuatan:	28va, 31w	Koneksi:	DIN43650A
Kode pemesanan:	AB510	Kelas Isolasi:	F, h
Kelas Perlindungan:	IP65	Diameter Lubang Koil:	16mm
Menyoroti:	AB510 Solenoid Coil , Coil AB510 12V DC 16mm , solenoid valve Coil AB510 16mm

Solenoid Valve Coil AB510 Inner Hole 16mm 28VA 31W 12VDC 24VDC 110VAC 220VAC

This AB510 solenoid coil is popularly used in water solenoid valves, like 2W040-10, 2W160-15, 2W200-20, 2W250-25, 2S040-10, 2S160-15, 2S200-20, 2S250-25. Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Coil Power: 28VA, 31W. Solenoid valves consist of a coil, plunger and sleeve assembly. Solenoid valves are the most frequently used control elements in fluidics. They are commonly used to shut off, release, dose, distribute or mix fluids. For that reason, they are found in many application areas.

Dimension & Data of Water Solenoid Valve Coil, Armature:

AB510 dimension

BRANDO Model	BB16039502
Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power	28VA, 31W
Other voltage and power can be customized
Insulation Class	F, H
Connector	DIN43650A

BRANDO Model	BAPC216038501
2 Way or 3 Way	2 Way
NC or NO	NC
Plunger Tube Material	Stainless Steel
Moving Core Material	430FR
Shading Ring Material	Copper
Seal Material	NBR, EPDM, FKM
Mounting Type	Thread

Video of Coil For Water Solenoid Valve:

BRANDO Solenoid Valve Coils Production Video:

More Solenoid Valves for you to choose:


Brass Solenoid Valve	Stainless Steel Solenoid Valve	Plastic Solenoid Valve

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

Label:

Kontak Person: Mr. Brandon Bao

Tel: 86-13454729544

Faks: 86-574-83879820
