ASCO Type Solenoid Valve Armature Kit 302273 for 8210G001 8210G002

ASCO Type Solenoid Valve Armature Kit 302273 for 8210G001 8210G002

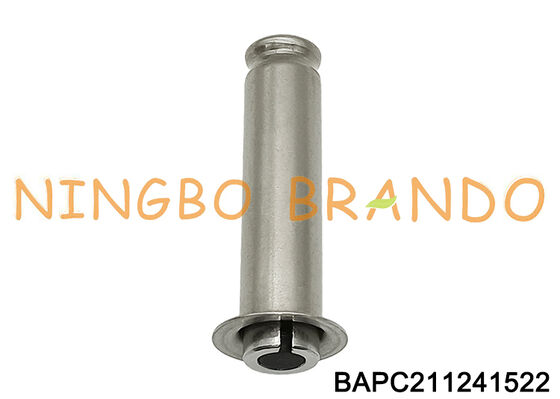

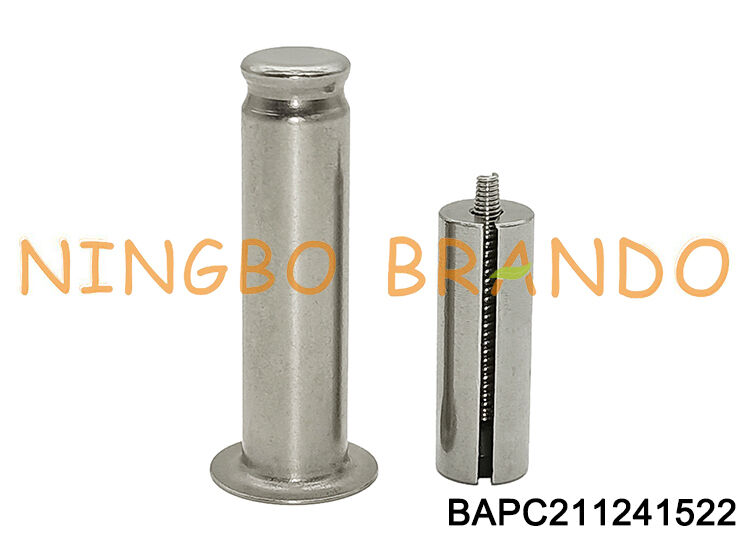

This armature assembly is designed for ASCO type red hat solenoid valve such like 3UK48, 3UK50, 3UK51, 3UK53, 3UK56, 8210G001 and 8210G002 series solenoid valves. The stem plunger set including 1 x stainless steel armature tube, 1 x stainless steel plunger with NBR seal and 1 x stainless steel spring. The armature tube outer diameter is 11mm, so it is suitable to 11mm inner hole diameter solenoid valve coil. The standard plunger's seal material is NBR, but HNBR, VITON, EPDM, Silicone are all available to customize.

Dimension & Data of Solenoid Valve Coil, Armature:

Details of Solenoid Valve Armature Assembly:

      Copper Shading Ring                                Flange Seat

                  Plunger Slot                                  NBR Seal

BRANDO Solenoid Valve Armature Production Video:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
