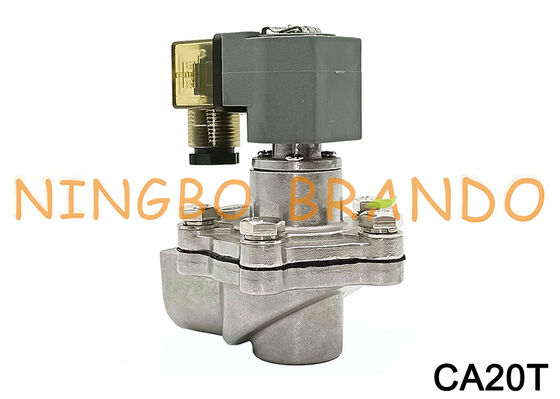

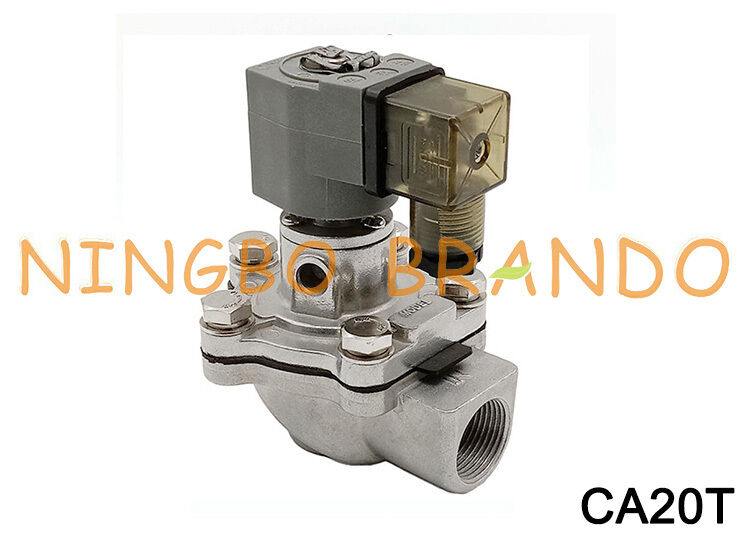

Name: CA20T G3/4'' Dust Collector Pulse Diaphragm Valve 220V 110V 24V
Brand: Ningbo Brando Hardware Co., Ltd
SKU: CA20T
Price: 49.10 USD
Availability: InStock

Rumah Produk Pulsa Jet Valve

CA20T G3/4'' Dust Collector Pulse Diaphragm Valve 220V 110V 24V

Detail produk:

Tempat asal:	Cina
Nama merek:	BRANDO
Sertifikasi:	None
Nomor model:	CA20T

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Kotak Dalam, Karton, Palet
Waktu pengiriman:	perundingan
Syarat-syarat pembayaran:	T/T, Western Union,
Menyediakan kemampuan:	165000 buah per bulan

Kontak

Detil Deskripsi produk

Ukuran Pelabuhan:	3/4''	Struktur katup:	Sudut Kanan, Port Berulir
Bahan Diafragma:	NBR, FKM	Rentang Tekanan Kerja:	0,35 hingga 0,85 MPa
Tegangan Kumparan:	24VDC, 110VAC, 220VAC
Menyoroti:	Goyen CA20T , CA20T Solenoid Valve , Goyen CA20T Diaphragm Valve

CA20T G3/4'' Dust Collector Pulse Diaphragm Valve 220V 110V 24V The CA20T is a 3/4-inch threaded, right-angle pulse jet valve. It is designed specifically to produce short, high-volume blasts of compressed air to clean filter bags, cartridges, or envelope filters in dust collector baghouse systems. Key Specifications Port Size: 3/4" (DN20) female threaded inlet and outlet (BSP or NPT). Body Material: Die-cast aluminum alloy. Valve Structure: Right-angle configuration (outlet
